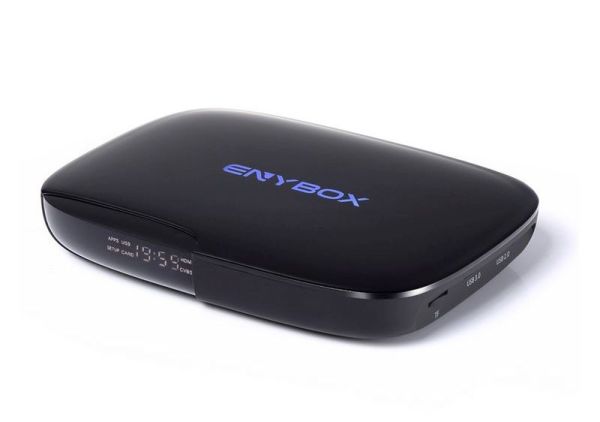

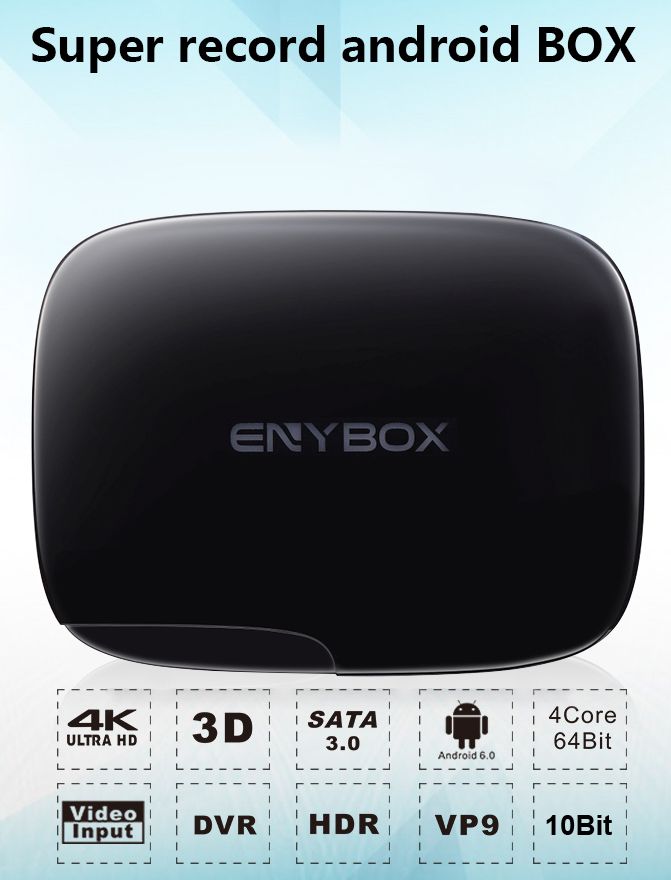

Smart TV Box iTV-X5 Realt

System Config

CPU

Realtek RTD1295 Quad-Core ARM Cortex-A53 64-bit 2GHz

GPU

ARM Mali-T820MP3 GPU Mali-450 8-core equivalent

RAM

DDR4: 2GB

ROM

eMMC: 16GB

WiFi

IEEE 802.11a/b/g/n/ac, 2.4G+5.8G

Bluetooth

BT 4.0

Language

Multi -language

Ethernet

1000Mbps LAN

OS

Android 6.0 Marshmallow

 Button & Ports

I/O

1 x HDMI output

4Kx2K UHD Output, HD 2.0a

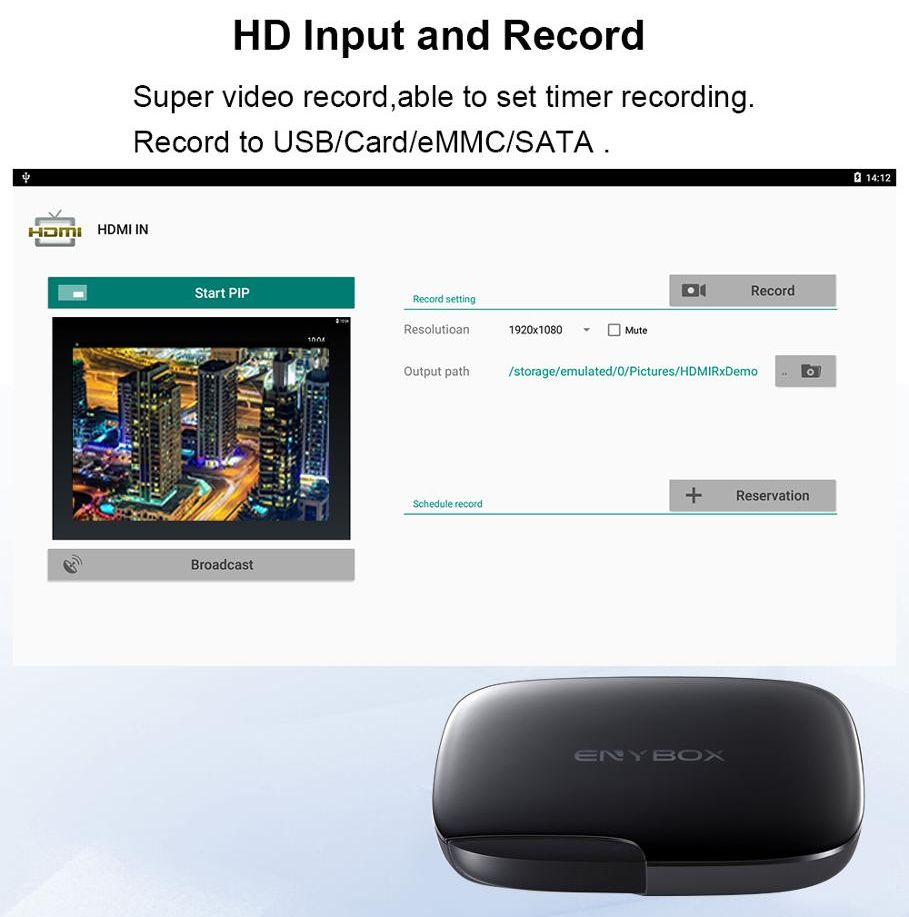

1 x HDMI input

HD input (HD1.4a~HD2.2a), Support HDCP Key with 1.4 or 2.2 version

1 x AV OUT

Composite video and audio output

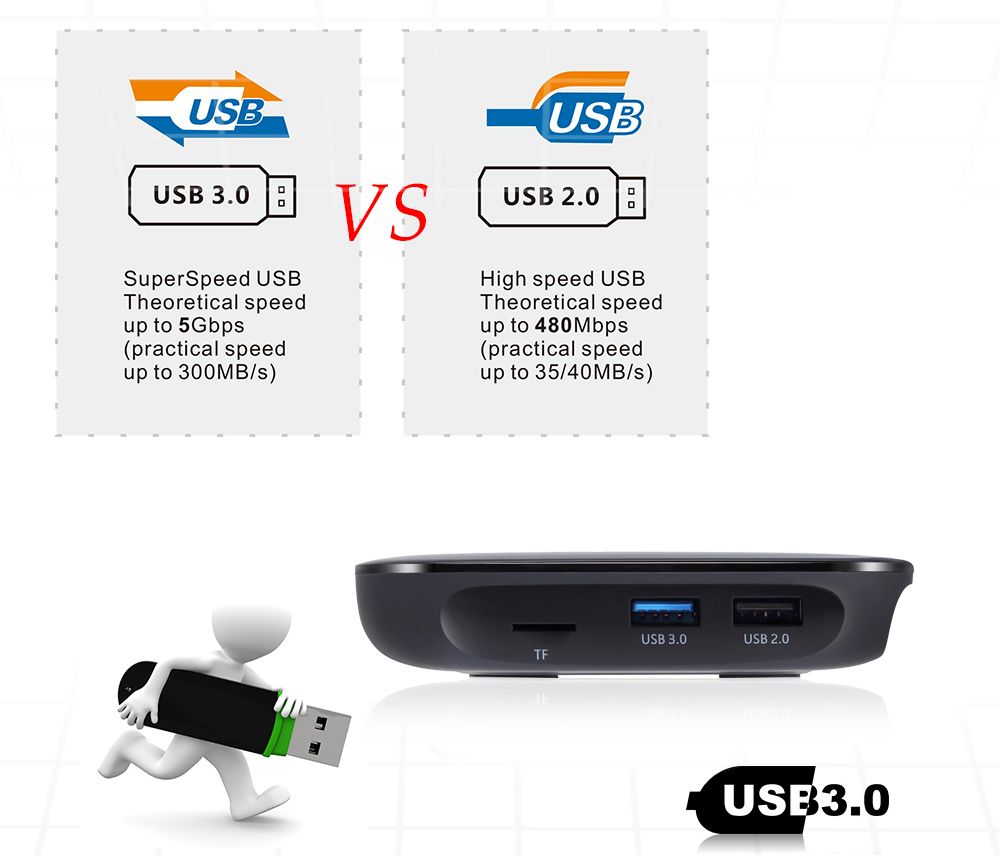

2 x USB

1 x USB 2.0, 1 x USB 3.0

1 x OPTICAL

Digital Audio output

1 x SATA

SATA 3.0

1 x RJ45

Ethernet 1000Mbps

1 x TF CARD

Support 4GB~64GB

Power Management

Power

Adapter DC12V 2A(100-240V,50/60Hz)

Video

Video Decoding

VP9 Profile-2 up to 4Kx2K 60fps

H.265 HEVC MP-10 L5.1 up to 4Kx2K 60fps H.264 AVC

HP L5.1 up to 4Kx2K 30fps

H.264 MVC up to 1080P 60fps

MPEG-4 ASP L5 up to 1080P 60fps

WMV/VC-1 SP/MP/AP up to 1080P 60fps

AVS-P16(AVS+)/AVS-P2 JiZhun Profile up to l080P 60fps

MPEG-2 MP/HL up to 1080P 60fps(ISO-13818)

MPEG-1 MP/HL up to 1080P 60fps(ISO-11172)

RealVideo 8/9/10 up to 080P 60fps

WebM up to VGA

Multiple language and multiple format sub-title video support

MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)

Supports JPEG thumbnail, scaling,rotation and transition effects

Supports:.mkv, wmv, mpeg, dat, avi, iso, mp4, rm and jpg file formats

Video Post-Processing Engine

Supports HDR10 and HLG HDR processing

Motion adaptive 3D noise reduction filter

Advanced motion adaptive edge enhancing de-interlacing engine 3:2 pull-down support

Programmable poly-phase scalar for both horizontal and vertical dimension for zoom and windowing

Programmable color management filter (to enhance blue, green, red, face and other colors)

Dynamic Non-Linear Luma filter

Deblocking filters

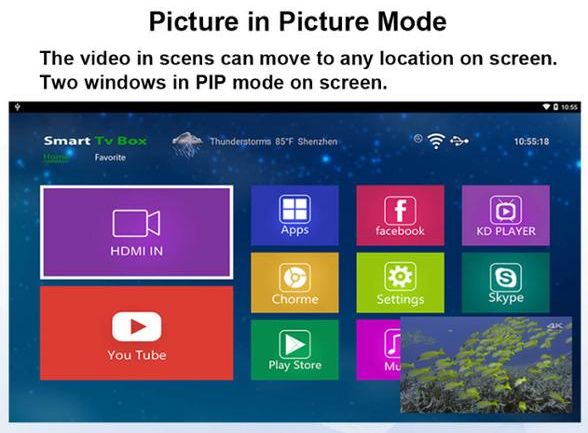

Programmable color matrix pipeline video mixer: 2 video planes and 2 graphics planes per video output

Video Output

Built-in HD 2.0a transmitter including both controller and PHY with CEC,HDR and HDCP 2.2,4Kx2K 60

max resolution output CVBS 480i/576i standard definition output

Supports and standard SD/HD/FHD video output formats: 480i/p, 576i/p, 720p, 1080i/p and 4Kx2K;

Audio Decoder - Input/Output

Audio

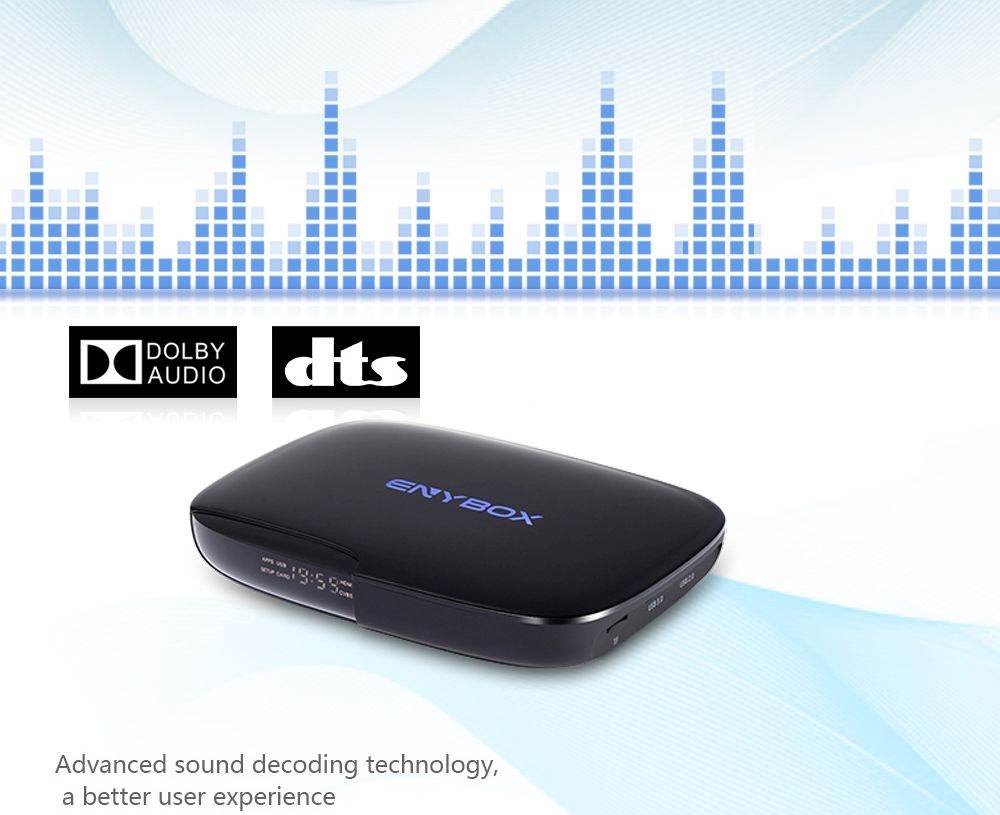

Support ture Dolby Digital and DTS HD

Support HD audio(7.1ch) decode and passthrough Redesigned Native player.

Blu-ray better compatibility, Powerful subtitles.

Built-in audio codec with 24bit resolution:

Supports MP3,AAC,WMA,RM,FLAC,Ogg and programmable with 5.1 down-mixing

Built-in serial digital audio SPDIF/IEC958 output and PCM input/output

Built-in stereo audio DAC

Stereo digital microphone PDM input

Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM

RTC

RTC

Real Time Clock(RTC Battery)
There is no need to repeat the correction time,
System startup--to automatically display the real-time time


HD JPEG, BMP, GIF, PNG, TIF

Appliactions

Online

Browse all video websites, support Netflix, Hulu, Youtube, etc.

Apps

Apps download freely form android market, amazon app store etc.

Medium

Local Media playback, Support HDD, U Disck, SD/MMC Card.

Talk online

Support SKYPE video call , MSN, Facebook, twitter, whatsapp etc.

Others

Support Email,office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard

Packing

Packing

Product  size (LxWxH)

14cm x 10.5cm x 2cm

Unit packing: (LxWxH)

17cm x 13.5cm x 7.5cm
