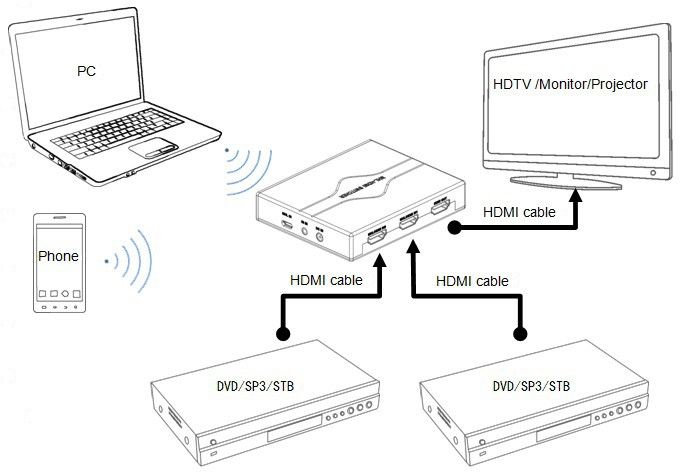

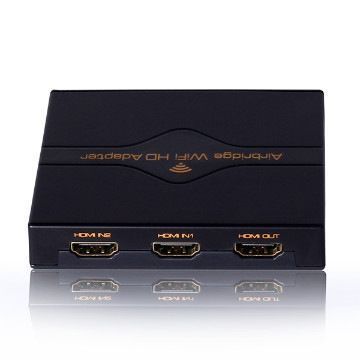

This product will let the user experience of transmitting the HD content by wireless, which also can allow the user to view any PC / Mobile phone information on a compatible TV by the WIFI network. This product is compatible with IEEE802.11 b/g/n standards, which can be connected with other wireless devices which meet the standard. The pc only needs to install wireless network card,and then it can work. In addition, the adapter supports 2-channel HDMI high-definition signal source input, can be suitable for use in multi signal source.
|
HDMI output resolution |
4Kx2K/30Hz,1080p/1080i/720p/576p/576i/480p/24/30/50/60Hz |
|
Support video color format |
24bit/deep color 30bit/36bit |
|
HDMI audio format |
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
|
Wireless Frequency range |
2.4~2.4835GHz |
|
Wireless transmission rate |
150Mbps |
|
Wireless transmit power |
15dBm (MAX TX) |
|
Wireless transmission distance |
10m (Indoor and no obstacle) |
|
Transmission delay |
≤200ms(Related to PC performance, may be greater than this value) |
|
HDMI max bandwidth |
250MHz |
|
HDMI max baudrate |
7.5Gbps |
|
Input/Output TMDS signal |
0.5~1.5Volts p-p(TTL) |
|
Input/Output DDC signal |
5Volts p-p (TTL) |
|
HDMI output cable distance |
≤15mAWG26 HDMI standard cable |
|
Max working current |
500mA |
|
Power adapter format Input |
AC 100V~240V 50HZ/60HZ; DC5V/2A |
|
Operating Temperature range |
0 to +40℃ |
|
Storage Temperature range |
-20 to +60℃ |
|
Operating Humidity range |
10 to 90%RH (No Condensation) |
|
Storage Humidity range |
5 to 95%RH (No Condensation) |
|
Case size (L x W x H) |
95x77x18.5 (mm) |
|
Weight |
85g |
| Manufacturer | ASK |
|---|---|
| Power Supply | N/A |
| Color | Black |
