HDMI Audio Embedded and E

Feature:

• One HDMI Inputs switch to one HDMI Output
• Support 4K
• By pressing the button at device can do switch between the Audio Extract Mode and Audio Embed Mode
• Coax Port and LR Port can be used as the Input/Output at Audio Extract and Audio Embed mode to reduce the number of port to let device become more simple and easy-use.
• At Audio Extract Mode, Digital Port of Toslink and Coax can support 192Khz Sampling Rate(LPCM2.0 Audio Format)
• At Audio Extract Mode, it supports 2.0CH,5.1CH and Pass Three Audio EDID Set.

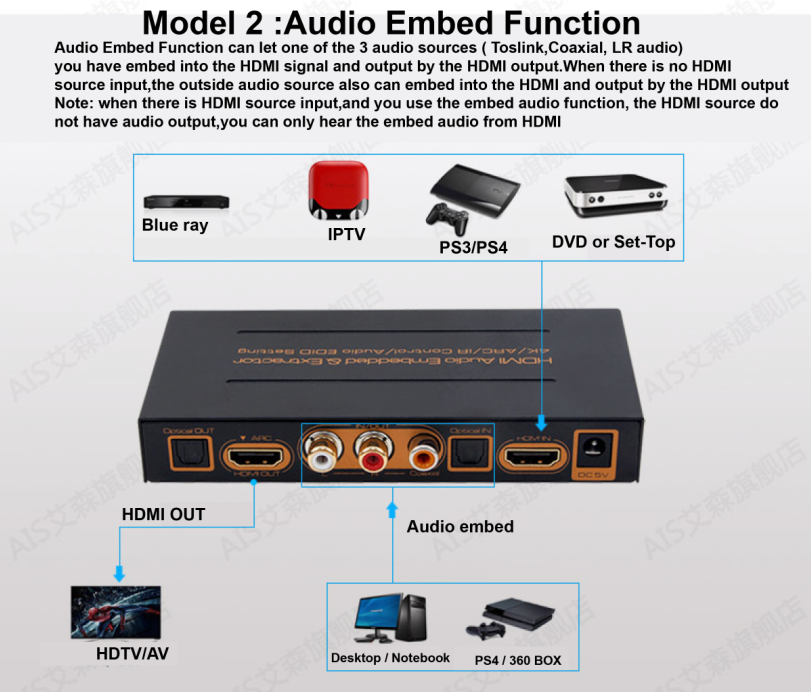

• At Audio Embed Mode, Digital Audio Port of Toslink and Coax supports max 96KHz Sampling Rate ( Only when input audio source is LPCM 2.0 Audio Format), also it supports Dolby-AC3 and DTS Audio Format Input. The analog audio (LR Channel) supports max 2V P-P analog audio input.

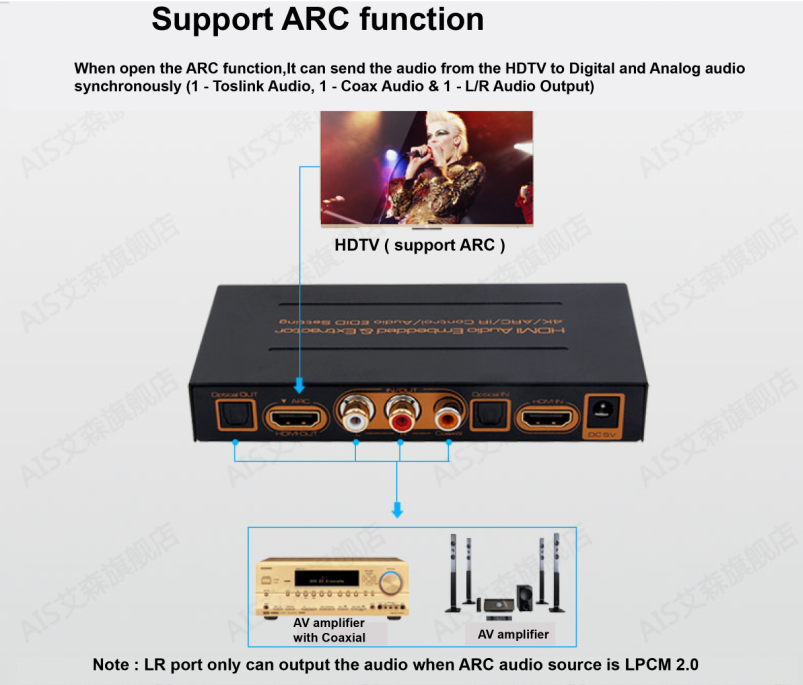

• It supports ARC. The ARC audio can output by the digital port of Toslink and Coax and the analog LR audio port(analog audio only can output when the ARC Audio source is LPCM 2.0 Audio format).
• Support Power Off Memory Function, it can remember the last working state. When power on again, it can back to the last working state.

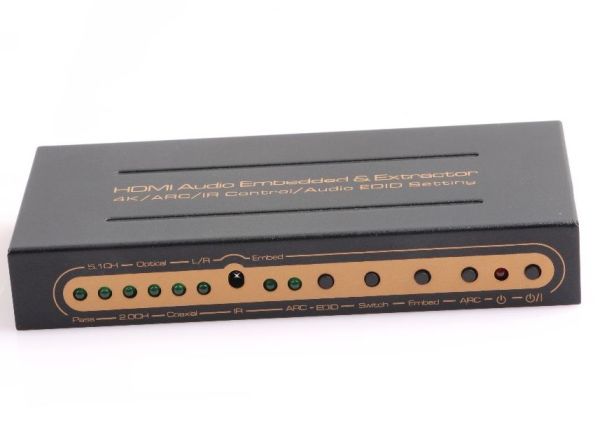

• LED Status Light shows clearly the working state.
• HDMI Input and Output distance can be up to 8m using the AWG26 standard HDMI Cable.
• No Loss of Signal
• Easy-Install
• DC5V1A Power Adapter

Specifikations:

• HDMI Resolution: 24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i,24/30/2160P
• Deep Color: 24/30/36bit/1080P/1080i/720p/576p/576i/480P/480i,24bit//2160P
• HDMI In/Out Supported Audio Format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
• Digital Audio Output Supported Audio Format: LPCM2.0/Dolby AC3/DTS
• Digital Audio Output Sampling Rate: 32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz
• Digital Audio Output Max Bandwidth: 25MHz
• Digital Audio Input Audio Format: LPCM2.0/Dolby AC3/DTS
• Digital Audio Output Sampling Rate: 32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz
• Analog Audio Max Input/Output Voltage: 2V P_P
• Analog Audio Max Input/Output Frequency Range: 70Hz~16KHZ
• HDMI Channel Max Bandwidth: 300MHz
• Input / Output DDC signal: 5Vp-p(TTL)
• HDMI Input Cable Length: 8m AWG26 HDMI standard cable
• HDMI Output Cable Length: 8m AWG26 HDMI standard cable
• Max Working Current: 500mA
• Power Adaptor Format: AC Input(50 /60HZ):100V-240V;DC Output:5V/1A
• Working Temperature Range: 0 to +40℃)
• Working Humidity Range: 5 to 85%RH(No Condensation)
• Size:  205x74x26 (mm)
• Weight: 363g

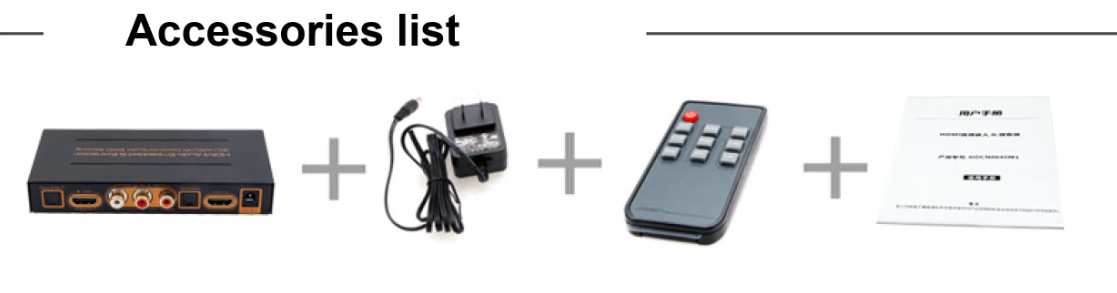

Accessories Content:

• HDMI Audio Embedded & Extractor
• 5V/1A Power Adapter
• User manual
• Remote control
