HDMI switch 2X1 with audi

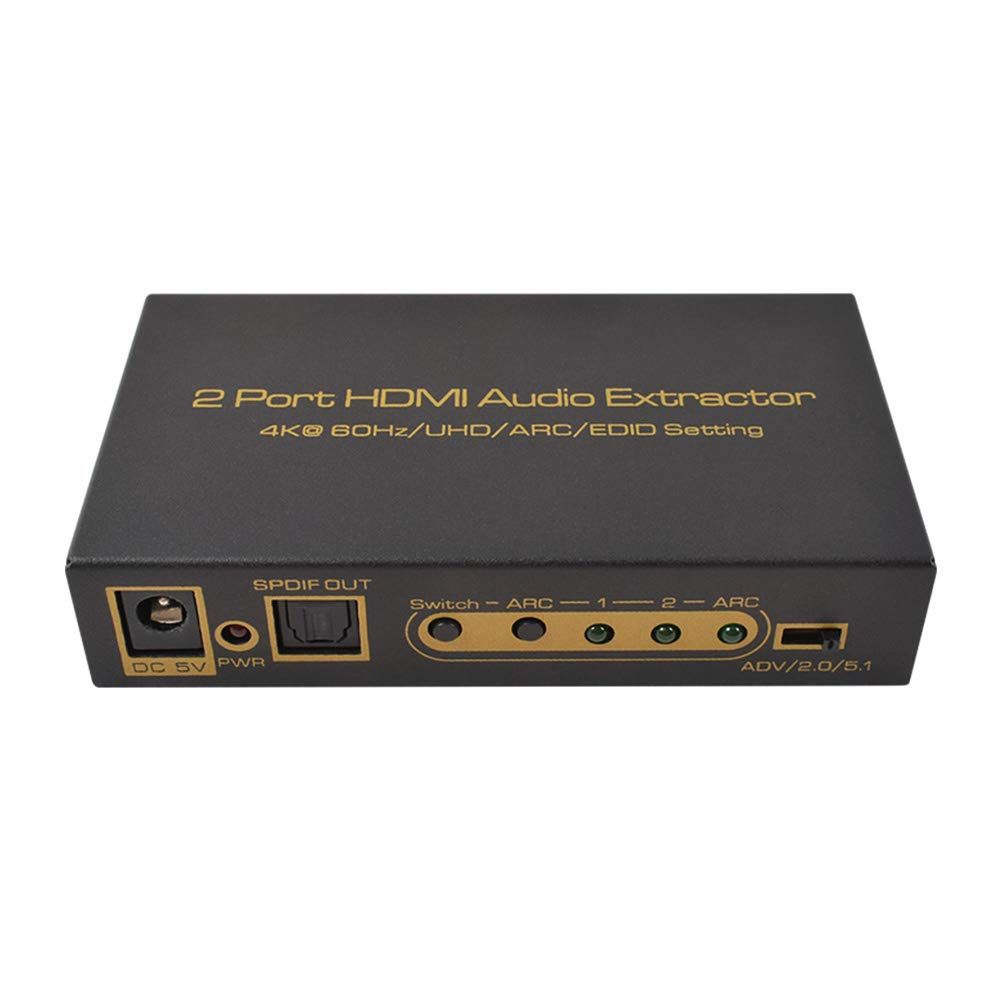

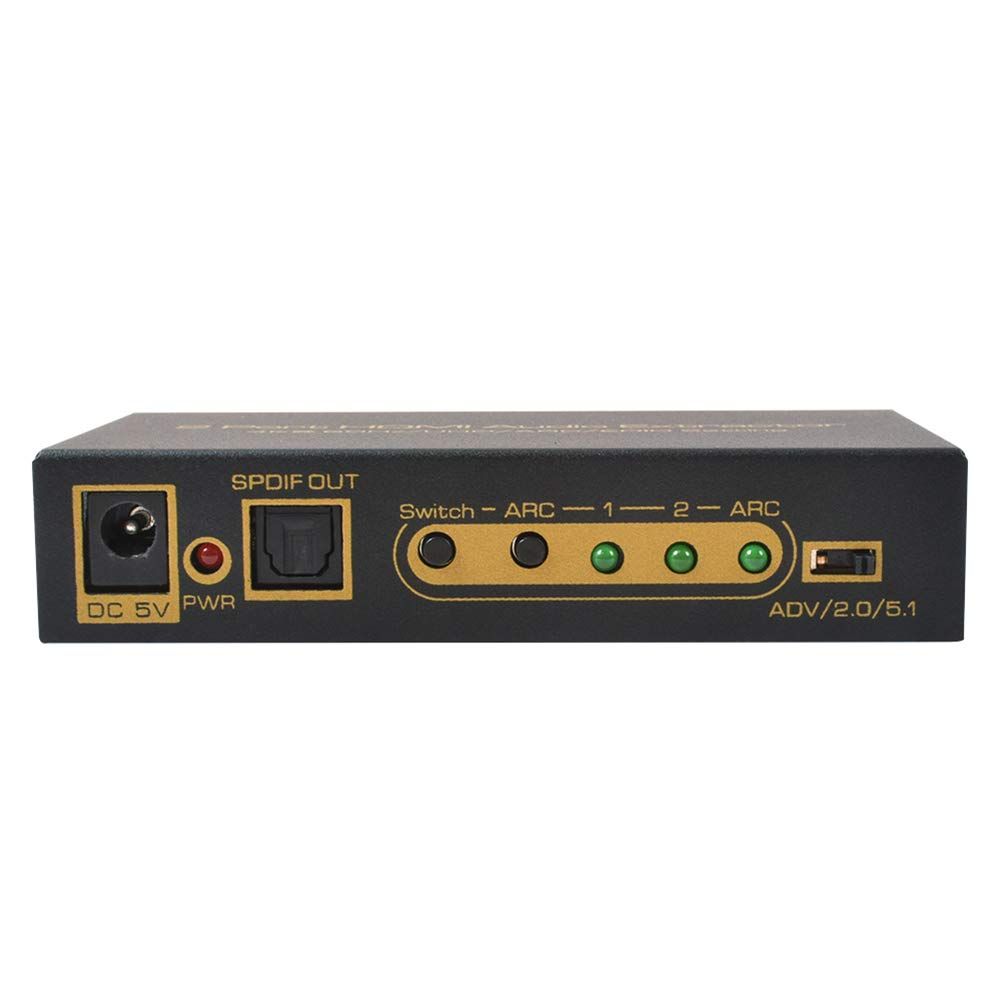

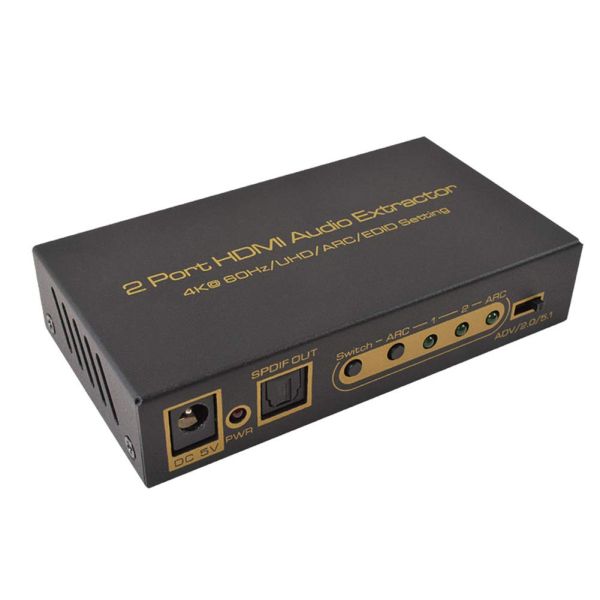

The device is one 2 Port HDMI Audio Extractor with support of ARC, 3D and HDR, 4KX2K; which can switch easily two HD Sources to one HD Display. Also any of the input sources support the audio extract by the SPDIF and LR audio output channel. The Switcher supports ARC function that can do TV audio return back to the AV receiver.

FEATURES

1. Three HDMI input signals switched to a single HDMI sink devices
2. Any input HD Source can do audio extract by the SPDIF or L/R audio output port.
3. Support HDR
4. Support 4K*2K @60Hz resolution
5. Video Format Support: 4Kx2K/60Hz 8Bit YcbCr4:4:4;
6. Supports ARC ,TV audio will return and out by the Optical Port;
7. HDMI to achieve the synchronization of audio signal separation. Support ADV/2.0/ 5.1 three kinds of audio mode options
8. Digital audio port of Toslink can support 192Khz Sampling Rate(LPCM2.0 Audio Format), also can support LPCM 2.0, Dolby-AC3, DTS audio output.
9. In 4K@60Hz HDMI UHD resolution, HDMI Input and Output distance can be up to 5m        using the AWG24 standard HDMI Cable. In 4K@30Hz and other lower resolution, HDMI Input and Output distance can be up to 8m using the AWG26 standard HDMI Cable.
10. Need DC5V/1A power suppl

SPECIFICATIONS:

• HDMI resolution……........ 4Kx2K@60Hz /4Kx2K@30Hz/ 1080p/1080i/720p/576p/576i/480p/480i
• HDMI In/Out Supported Audio Format... ... ... ...DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
• Audio output………………………………………………………….. …. . SPDIF and L/R Audio
• Digital Audio Output Supported Audio Format.... ... ................LPCM2.0/DolbyAC3/DTS
• Digital Audio Output Sampling Rate.. .... .... .... .... .... .......32KHz, 44.1KHz, 48KHz, 88.2KHz,96KHz, 176.4KHz, 192KHz
• Max bandwidth……………………………………………………………………………..600MHz
• Max baud rate……………….…….………………….……………………………………..18Gbps
• Input/Output DDC signal ……………………………………………… ..……… 5Volts p-p (TTL)
• Input cable distance..…... …………………≤8m(1080P)/5m(4K) AWG24 HDMI standard cable
• Output cable distance………………… …≤8m(1080P)/5m(4K) AWG24 HDMI standard cable
• Max working current……………………………………………………………………….....500mA
• Power adapter format. Input: ……………...AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A
• Operating Temperature range……..…………….………………………………………-0 to +40℃
• Storage Temperature range…………………………………………………………… -15 to +55℃
• Operating Humidity range………………………….….……….5 to 85%RH (No Condensation)
• Storage Humidity range………………………….….……….…5 to 95%RH (No Condensation)
• Dimension (L x W x H)……………………………….………………………105x57x22.4(mm)
• Weight…..………………………………………………………..…….…..……………………160g y
